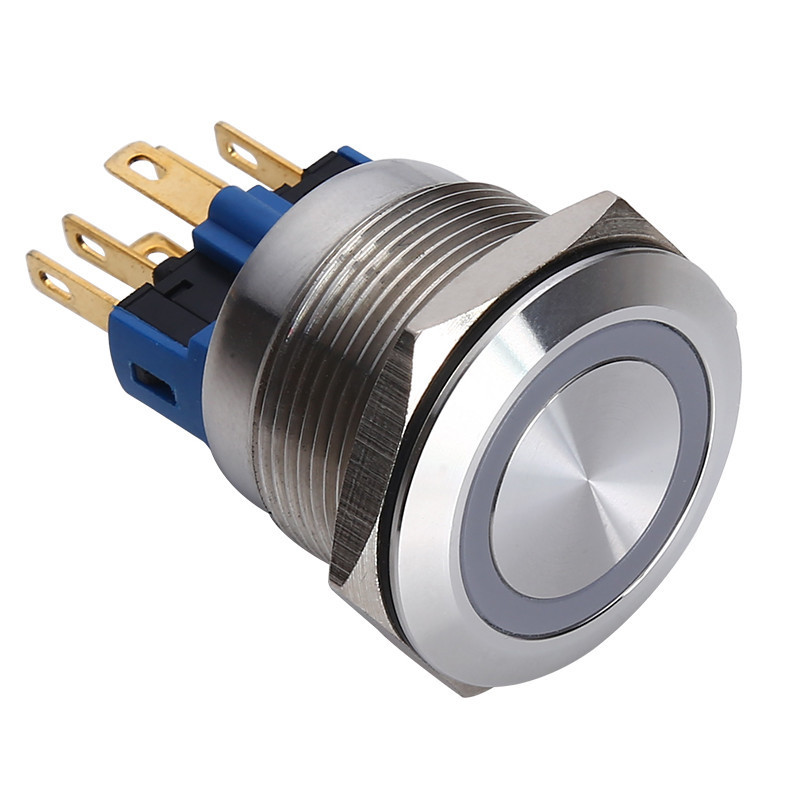

Pushbutton 22mm Stainless Steel - Momentary

Looking for a reliable and robust pushbutton for your project? This 22mm momentary pushbutton, crafted from high-quality stainless steel, combines a sleek design with industrial durability. It is the perfect choice for control panels, machine control, DIY electronics, and other applications where reliability is essential.

Robust Design, Reliable Function

This stainless steel pushbutton is designed to perform in demanding environments while maintaining a clean and modern look.

• High-Quality Stainless Steel: The housing is made from stainless steel, which not only gives the button a premium look but also makes it vandal-proof and corrosion-resistant.

• Momentary Action (Pulse Switch): This is a momentary switch, meaning the circuit is closed only as long as the button is being pressed. Ideal for functions such as a doorbell, starter, horn, or other signal and trigger applications.

• Standard 22mm Mounting Size: The pushbutton has a standardized mounting diameter of 22mm, making it easy to install in most standard panels and enclosures.

• Vandal-Proof and Weather-Resistant: Thanks to its solid metal construction, the button is highly resistant to both physical impact and dust and moisture, ensuring a long lifespan.

• Sleek and Professional Design: The minimalist and clean look of brushed stainless steel provides a professional finish for any panel or device.

Versatile Applications

The combination of durability and functionality makes this 22mm pushbutton ideal for a wide range of applications:

• Industrial Control Panels and Machine Control

• DIY Electronics and Hobby Projects

• Access Control Systems and Door Openers

• Custom AV Installations and Control Panels

• Marine and Automotive Applications

Choose certainty and a professional finish. Order your 22mm stainless steel momentary pushbutton today and build with components you can rely on.

Pushbutton 22 mm stainless-steel

1.Switch rating: Ui:250V，Ith:5A

2.Mechanical life: ≥1,000,000 cycles

3.Electrical life: ≥50,000 cycles

4.Contact resistance: ≤50mΩ

5.Insulation resistance: ≥100MΩ(500VDC)

6.Dielectric strength：1,500V，RMS 50Hz，1min

7.Operation temperature: - 25 ℃~55℃ (+no freezing)

8.Operating pressure: about 4N(1NO1NC),about 7.5N(1NO1NC)

9.Operation travel: about 2.5mm

10.Torque：about 0.8Nm Max.applied to nut

11.Front panel protection degree：IP65(Momentary IP67 made to order)，IK10

12.Terminal type: Pin terminal (2.8x0.5mm)
